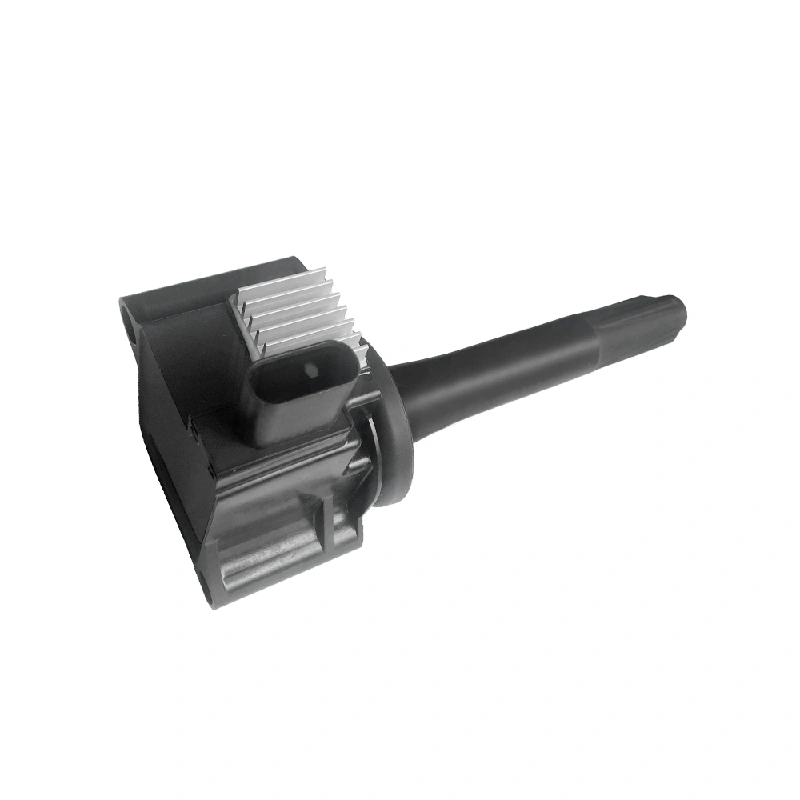

Ignition Coil 12698941/12690752
IGNX No: STIC4109
OE No.:
Inquiry Now >>
12698941
12690752
H6T15871BC
Product Detail
| ST NO. | Brand | OEM No. | Model(s) & Years | PINS | MODULE |
| STIC4109 | CHEVROLET | 12698941 12690752 H6T15871BC |
CHEVROLET TRAILBLAZER 1.3T (2021-2022) | 4 PINS | WITH |
This Chevrolet ignition coil is supplied for the listed OE numbers 12698941, 12690752, and H6T15871BC. It features a 4 pins connector and with-module configuration, so connector layout, module structure, housing profile, and mounting arrangement are useful points to review when confirming a replacement product.
During product comparison, buyers can check the applicable OE number together with connector orientation, terminal position, plug direction, coil body shape, mounting details, and overall dimensions of the original part. Reviewing several structural details together provides a clearer basis for confirmation than relying only on the part number or exterior appearance.
Connector and Module Matching Details
Listed OE References
Confirm the applicable listed OE number against the original component during sample review, quotation, catalog preparation, or order confirmation. The OE reference can be checked together with the physical coil structure.
4 Pins Connector
The 4 pins connector is an important visible matching point. Connector shape, terminal arrangement, locking position, plug direction, and installation orientation can be compared with the original ignition coil.
With Module Structure
This ignition coil is listed as with module. Module configuration should be reviewed together with the connector design, housing shape, and mounting structure when confirming the required replacement specification.
Electrical Construction and Inspection Focus
Ignition coil operation is related to the primary and secondary windings, internal insulation, terminals, electrical connections, and control-related components within the coil assembly. During product evaluation, these areas can be considered together with connector fit, housing condition, mounting dimensions, and overall assembly condition.
Temperature changes, engine vibration, and repeated electrical loading are common working conditions around ignition components. Depending on the buyer's inspection requirements, checking may include terminal contact, connector condition, housing integrity, insulation-related characteristics, and relevant electrical measurements.
Sample and Batch Specification Review
During sample evaluation, the replacement coil can be compared with the original part for the applicable OE number, 4 pins connector, with-module structure, connector orientation, housing profile, and mounting details. Original coil photos or connector close-ups can provide additional reference when further confirmation is required.
For repeat or batch purchasing, the approved sample can serve as a reference for connector configuration, visible assembly details, labeling, and packaging requirements. Any project-specific specifications can then be confirmed according to the actual purchasing plan.
