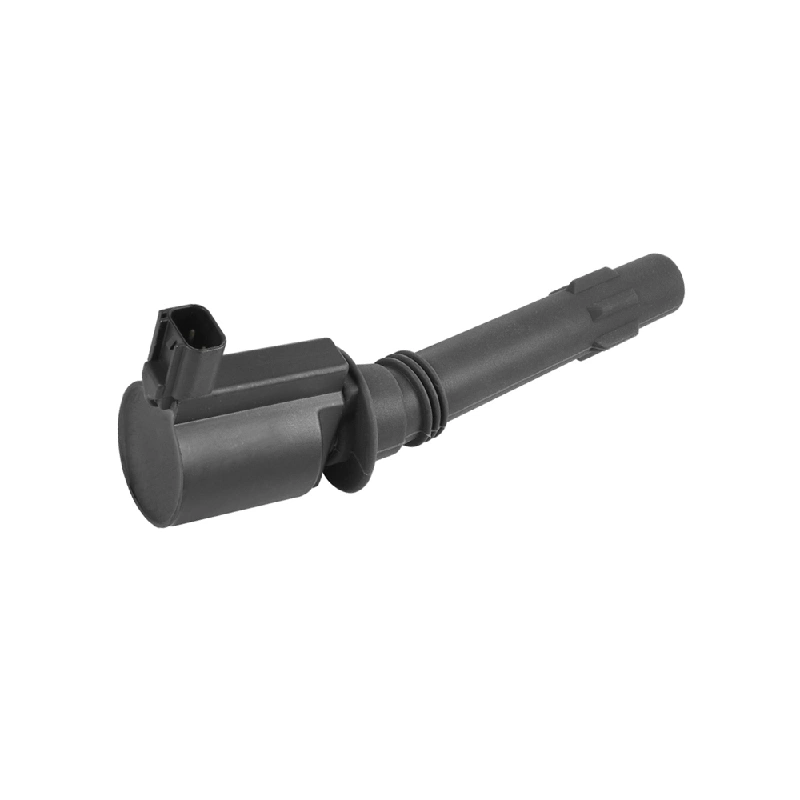

Ignition Coil BA12A336A/BAF12A366A
IGNX No: STIC4016
OE No.:
Inquiry Now >>
BA12A336A
BAF12A366A
3R2U12A366AA
5RAU12A366AA
Product Detail
| ST NO. | Brand | OEM No. | Model(s) & Years | PINS | MODULE |
| STIC4016 | FORD | BA12A336A BAF12A366A 3R2U12A366AA 5RAU12A366AA |
FORD TERRITORY 4.0L V6 (2003-2011) FORD FALCON 4.0L V6 (2002-2008) |
2 PINS | WITHOUT |
This Ford ignition coil is supplied for the listed OE numbers BA12A336A, BAF12A366A, 3R2U12A366AA, and 5RAU12A366AA. It uses a 2 pins connector and without-module configuration, so connector layout, housing profile, mounting arrangement, and overall coil structure are useful reference points when reviewing a replacement product.
During product comparison, buyers can review the applicable OE number together with connector orientation, terminal position, plug direction, housing shape, mounting details, and overall dimensions of the original coil. Checking several structural details together provides a more complete reference than identifying the product by exterior appearance alone.
Key Structure Details to Review
Listed OE Numbers
Check the applicable listed OE number against the original part during sample review, quotation, catalog preparation, or order confirmation. The OE reference can be considered together with the physical coil structure.
2 Pins Connector
The 2 pins connector is an important visible matching feature. Connector shape, terminal arrangement, locking position, plug direction, and installation orientation can be compared with the original ignition coil.
Without Module Configuration
This ignition coil is listed as without module. Module status can be reviewed together with connector and housing details when confirming the required replacement structure.
Electrical Construction and Condition Checks
Ignition coil operation is related to the condition of the primary and secondary windings, internal insulation, terminals, and electrical connections. During product evaluation, these areas can be considered together with connector fit, housing condition, mounting dimensions, and general assembly condition.
Engine heat, temperature changes, vibration, and repeated electrical loading are common operating conditions around ignition components. Depending on the buyer's inspection requirements, evaluation may include connector and terminal condition, housing condition, insulation-related characteristics, and relevant electrical measurements.
Sample and Product Specification Review
During sample evaluation, the replacement coil can be compared with the original part for the listed OE number, 2 pins connector, without-module structure, connector orientation, housing profile, and mounting details. Original coil photos or connector close-ups can provide additional reference when further comparison is required.
For regular purchasing, the reviewed sample and confirmed product structure can serve as a reference for later order communication. Packaging method, label information, required quantity, and other project-specific details can be reviewed according to the buyer's purchasing requirements.
