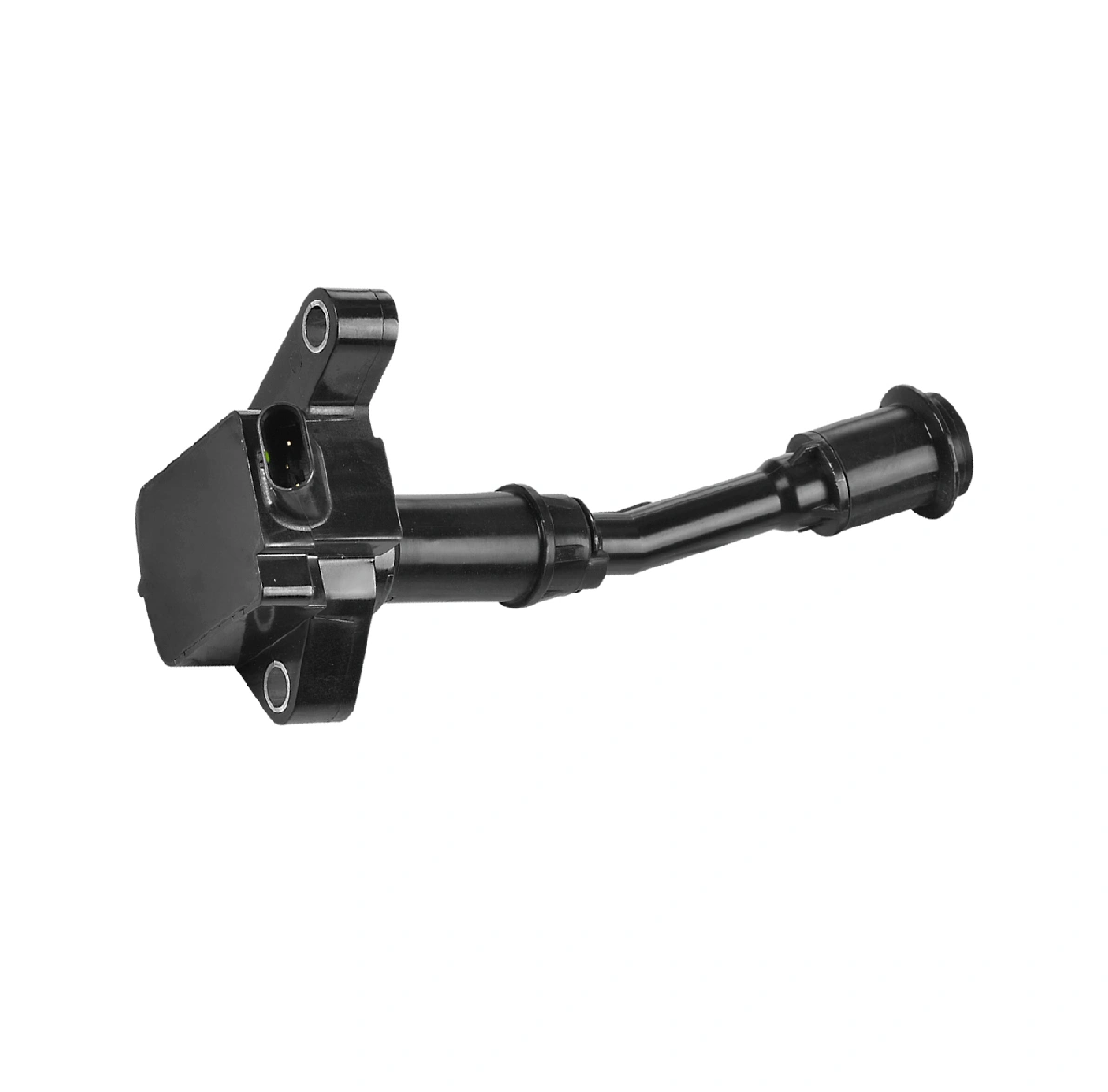

Ignition Coil DS7G12A366BB/DS7Z12029B UF735
IGNX No: STIC4034
OE No.:
DS7G12A366BB
DS7Z12029B
SMP :
Inquiry Now >>
UF-735 (UF735)
Product Detail
| ST NO. | Brand | OEM No. | Model(s) & Years | PINS | MODULE |
| STIC4034 | FORD | DS7G12A366BB DS7Z12029B |
FORD FUSION 1.5L (2014-2016) | 3 PINS | WITH |
This Ford ignition coil is supplied for the listed OE numbers DS7G12A366BB and DS7Z12029B. It features a 3 pins connector and with-module configuration, so the connector layout, module structure, housing profile, and mounting arrangement are useful points to review when selecting or confirming a replacement coil.
During product comparison, buyers can check the listed OE number together with connector orientation, terminal layout, plug direction, coil body shape, mounting position, and overall dimensions of the original part. Reviewing several structural details together provides a more complete reference than identifying the coil only by exterior appearance.
Module, Electrical Structure and Inspection Focus
3 Pins Connector
Connector shape, terminal position, locking structure, plug direction, and installation orientation can be compared with the original coil during sample review or product confirmation.
With Module Structure
This ignition coil is listed as with module. Module configuration should be considered together with the connector and housing design when confirming the required replacement structure.
Winding & Insulation
Primary and secondary windings, internal insulation, terminals, and electrical connections are common areas considered when reviewing ignition coil construction and electrical condition.
Engine heat, temperature changes, vibration, and repeated electrical loading are common operating conditions for ignition components. Depending on the buyer's inspection requirements, evaluation may include connector and terminal condition, housing and assembly condition, insulation-related characteristics, and relevant electrical measurements.
Sample and Order Specification Review
During sample evaluation, the replacement coil can be compared with the original part for the listed OE number, 3 pins connector, with-module structure, connector orientation, housing profile, and mounting details. Original coil photos or connector close-ups can also provide additional reference when further visual comparison is required.
For regular purchasing, the reviewed sample and confirmed product structure can serve as reference for later order communication. Packaging method, label information, required quantity, and other project-specific details can be discussed according to the buyer's purchasing requirements.
